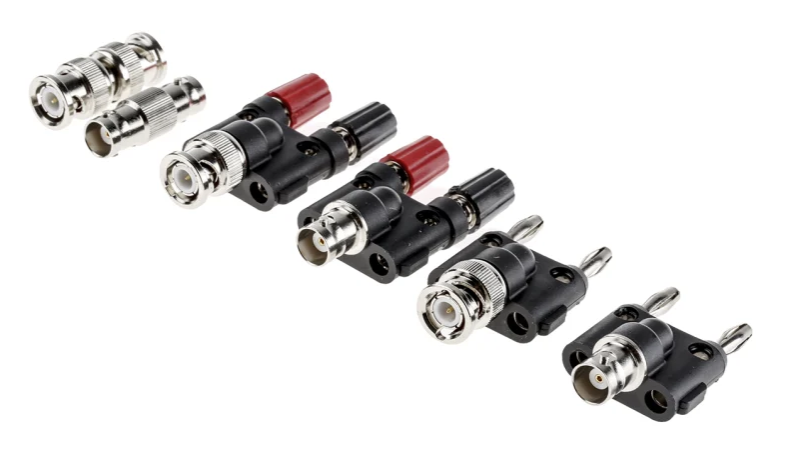

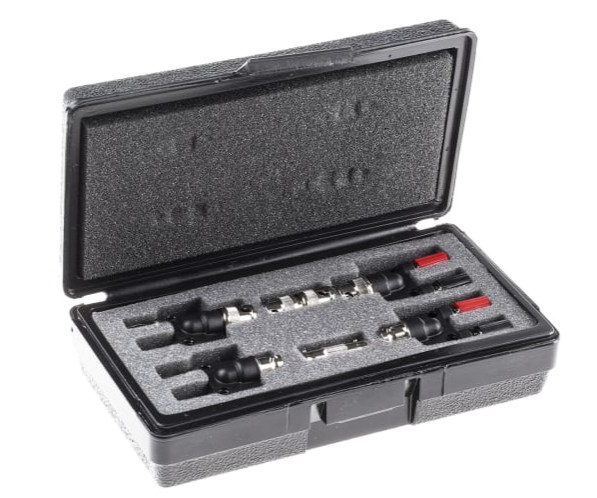

IT CONTAINS:
Model 1269: BNC Female To Double Stacking Banana Plug: Body: Brass, Nickel Plated, Dielectric: PTFE
Center Contact: Beryllium Copper, Gold Plated, Banana Plug - Body: Brass, Nickel Plated, Spring: Beryllium Copper,
Nickel Plated, Insulation - ABS Molded to BNC (Female) and Banana Plug Bodies, Color: Black
Marking: “1269 POMONA ELECTRONICS POMONA CALIFORNIA”, RATINGS: Operating Voltage:
Hand-held testing: 30VAC/60VDC Max., Hands free testing in controlled voltage environments: 500 VRMS Max.,
Operating Temperature: +50°C (+122°F) Max.
Model 1270: BNC (Male): Body: Brass, Nickel Plated, Dielectric: PTFE, Center Contact: Brass, Gold Plated,
Impedance: 50 Ohms, Banana Plug: Body: Brass, Nickel Plated, Spring: Beryllium Copper, Nickel Plated,
Insulation: ABS Molded to BNC (Male) and Banana Plug Bodies, Color: Black, Marking: “1270 POMONA ELECTRONICS POMONA
CALIFORNIA”, RATINGS: Voltage: Hand-held testing: 30VAC/60VDC Max., Hands free testing in controlled voltage
environments: 500 VRMS Max. Operating Temperature: +50°C (+122°F) Max.
Model 1296: BNC (Male): Body: Brass, Nickel Plated Dielectric: PTFE, Center Contact: Brass, Gold Plated,
Impedance: 50 Ohms, Insulation: ABS Molded to BNC (Male) and Binding Post Bodies, Color: Black,
Marking: “1296 POMONA ELECTRONICS POMONA CALIFORNIA”, Binding Post: Body – Brass, Nickel
Plated, Insulated Thumb Knob – Polycarbonate, Color: One Black, One Red, RATINGS: Operating Voltage: Handheld
testing: 30VAC/60VDC Max., Hands free testing in controlled voltage environments: 500 VRMS Max., Operating
Temperature: +50°C (+122°F) Max.
Model 1452: Adapter-Binding Posts to BNC Receptacle: UPPER CONN: Binding Posts, Insulated, Material:
Binding post body, brass H.H. per QQ-B-626, Alloy 360, Finish: Nickel plated per QQ-N-290, class 2 (.0002 min.),
Insulation: Acrylonitrile-Butadiene-Styrene, molded to binding posts and BNC receptacle, Color: One Red and one
Black (Gnd), Operating Temperature: +115ºC. (+239ºF.) MAX., Marking: “POMONA ELECTRONICS
POMONA CALIFORNIA 1452.”, LOWER CONN: BNC receptacle, comparable to UG 1094/U, Finish: Body and
fittings, tarnish resistant, Nominal Impedance: 50 Ohms, RATINGS (Entire Assembly): Operating Temperature:
+50ºC. (+122ºF.) MAX., Voltage: Hand-held testing: 30 VAC/60 VDC MAX., Hands free testing in controlled
voltage environments: 500 VRMS.
Model 3283: Body – Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Beryllium Copper
Dielectric: PTFE, Marking: “Pomona 3283”, RATINGS: Voltage: Shield/Earth: 30VAC/60VDC Max., Inner
Conductor/Shield: 500VRMS Max., Operating Temperature: -65ºC to +165ºC, Nominal Impedance: 50 Ohms.
Model 3533: Body – Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Brass, Dielectric: PTFE, Finish:
Body and Fittings – Tarnish Resistant, Center Contact – Gold Plated, Marking: “Pomona 3533”,
RATINGS: Voltage: Shield/Earth: 30VAC/60VDC Max., Inner Conductor/Shield: 500VRMS Max., Operating
Temperature: -65ºC to +165ºC, Nominal Impedance: 50 Ohms.
